Kubota B and BX series salvage yard

Mountainman

Active member
Lifetime Member

Equipment
L2501, B7100, B2710 B21, B1750, B2400, B7200
Jul 10, 2022
443
180
43
Attalla Alabama
mossycreekoutdoors.com
B7100 4wd manual tranny front driveline appears to have a cover with a rubber boot that holds it in place my cover and boot are missing slowly getting tractor rebuilt also shaft that connects to drive shaft is very loose that comes out of front diff is there a bearing or bushing in the cone shaped piece do you have these parts thanks in advance
Im sure i have the tube but have to look about the bushing. No bearing in the cone just the joint that connects the driveshaft to the pinion shaft. If its the pinion shaft thats loose then yes there are bearings that hold it. Just remove those 3 bolts fr the cone and have a look. There shouldn't be any oil in there but most of the time there is from leaky seals on the shaft


pgrovetom

Member

Equipment
BX25
Nov 21, 2025
31
4
8
Sonoma
Hello. I have a small kubota B and BX series salvage yard in northeast Alabama. Below is a list of what I have right now. Shipping available on most parts. Please let me know how I can help. Thank you

B6100e
B6100d
B7100d
B7100hstd
B7100hste
B7200hste
B7200hstd
B5200e
B6200e
B8200ep
B8200hste-p
B8200dp
B8200hstd
B1550hste
B1750e
B1750hstd
B2100Hsd
B2400hsd
B7300hsd
B7800hsd
BX1800
Bx2200d
BX2230
Bx2350
Bx2360
Bx2370
Bx2670
Bx22
Bx24
F2400

Also check out the knowledge base on my website for lots of information regarding manuals, how-to's, compatibilties, and much more. It's a work in progress and continue to post as I can.

Https://Knowledge-base.mossycreekoutdoors.com
Thank you
Daryl
Mossy Creek Outdoors
Www.mossycreekoutdoors.com
You wouldn't know where I might get a 2008 BX25 dash as seen below



BX25 meters.jpg

Hello. I have a small kubota B and BX series salvage yard in northeast Alabama. Below is a list of what I have right now. Shipping available on most parts. Please let me know how I can help. Thank you

B6100e
B6100d
B7100d
B7100hstd
B7100hste
B7200hste
B7200hstd
B5200e
B6200e
B8200ep
B8200hste-p
B8200dp
B8200hstd
B1550hste
B1750e
B1750hstd
B2100Hsd
B2400hsd
B7300hsd
B7800hsd
BX1800
Bx2200d
BX2230
Bx2350
Bx2360
Bx2370
Bx2670
Bx22
Bx24
F2400

Also check out the knowledge base on my website for lots of information regarding manuals, how-to's, compatibilties, and much more. It's a work in progress and continue to post as I can.

Https://Knowledge-base.mossycreekoutdoors.com
Thank you
Daryl
Mossy Creek Outdoors
Www.mossycreekoutdoors.com
I do have brackets for a b2400 but not for a b7100. I'll send you a message
You wouldn't know where I could get a 2008 BX25 K2771-99000 dash with Water temp and fuel gauges and RPM LCD display that looks like that below. The gauges are run on small stepper motors and the very tiny gears on the temp gauge gauge is stripped.

Messicks https://www.messicks.com/parts/kubota/K2771-99000#locator

Outside



Inside assemply

BX25 meters.jpg


Schematic

BX25 gauge schematic rot.jpg


Or have any idea where I might get one? I've scoured Kubota parts and non-official Kubota parts and nobody has one. My only hope is too find a used one from a junked 2008 BX25. I was told this gauge was used for only 3 years on the early BX25 and a few other models.

Tom


Mountainman

Active member
Lifetime Member

Equipment
L2501, B7100, B2710 B21, B1750, B2400, B7200
Jul 10, 2022
443
180
43
Attalla Alabama
mossycreekoutdoors.com
You wouldn't know where I might get a 2008 BX25 dash as seen below

View attachment 166184

View attachment 166185


You wouldn't know where I could get a 2008 BX25 K2771-99000 dash with Water temp and fuel gauges and RPM LCD display that looks like that below. The gauges are run on small stepper motors and the very tiny gears on the temp gauge gauge is stripped.

Messicks https://www.messicks.com/parts/kubota/K2771-99000#locator

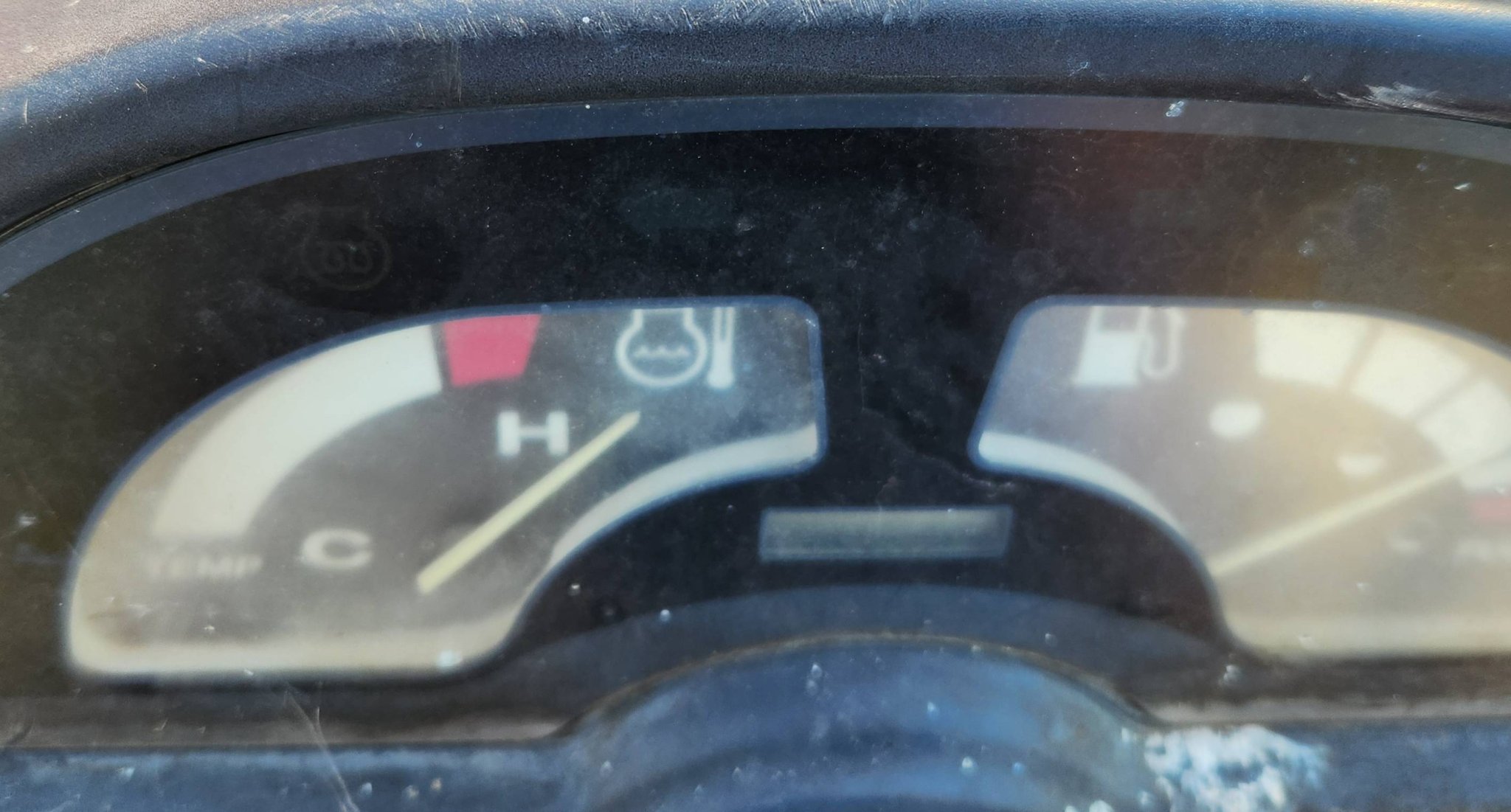

Outside

View attachment 166186

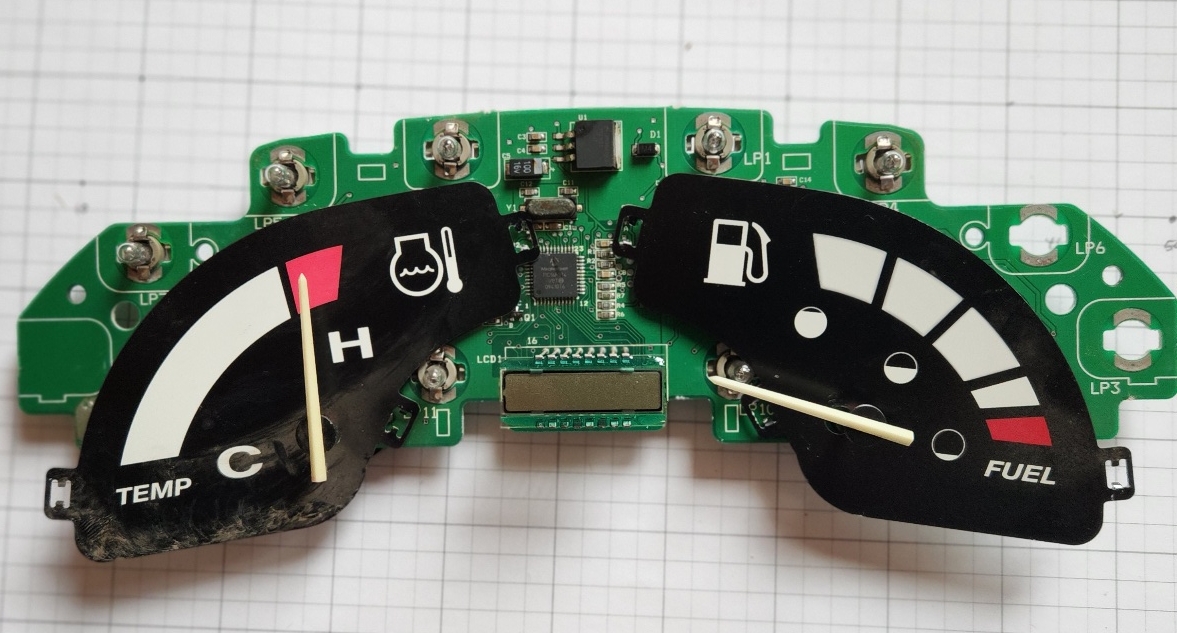

Inside assemply

View attachment 166187

Schematic

View attachment 166188

Or have any idea where I might get one? I've scoured Kubota parts and non-official Kubota parts and nobody has one. My only hope is too find a used one from a junked 2008 BX25. I was told this gauge was used for only 3 years on the early BX25 and a few other models.

Tom
Sorry for the delayed response. Your only option really is part K2751-99000 as far as availability. But its $850. That is the newer style with lcd but has the adapter to work with your bx25.

Very rare that they still work when they come in salvage.


Lumberjack1012

New member
Premium Member

Equipment
Kubota BX22D LA210
Jan 17, 2026
13
12
3
52
Denver North Carolina
I have a BX22D I am restoreing and need the mowing deck and backhoe. I have the mounting bracket for the backhoe thanks also do you have that band clamp that goes around the air cleaner mine is broke. 20260128_075515558_iOS.jpg

Last edited:

Henro

Well-known member

Equipment
B2910, BX2200, KX41-2V mini Ex.
May 24, 2019
6,065
3,345
113
North of Pittsburgh PA
…. also do you have that band clamp that goes around the air cleaner mine is broke.

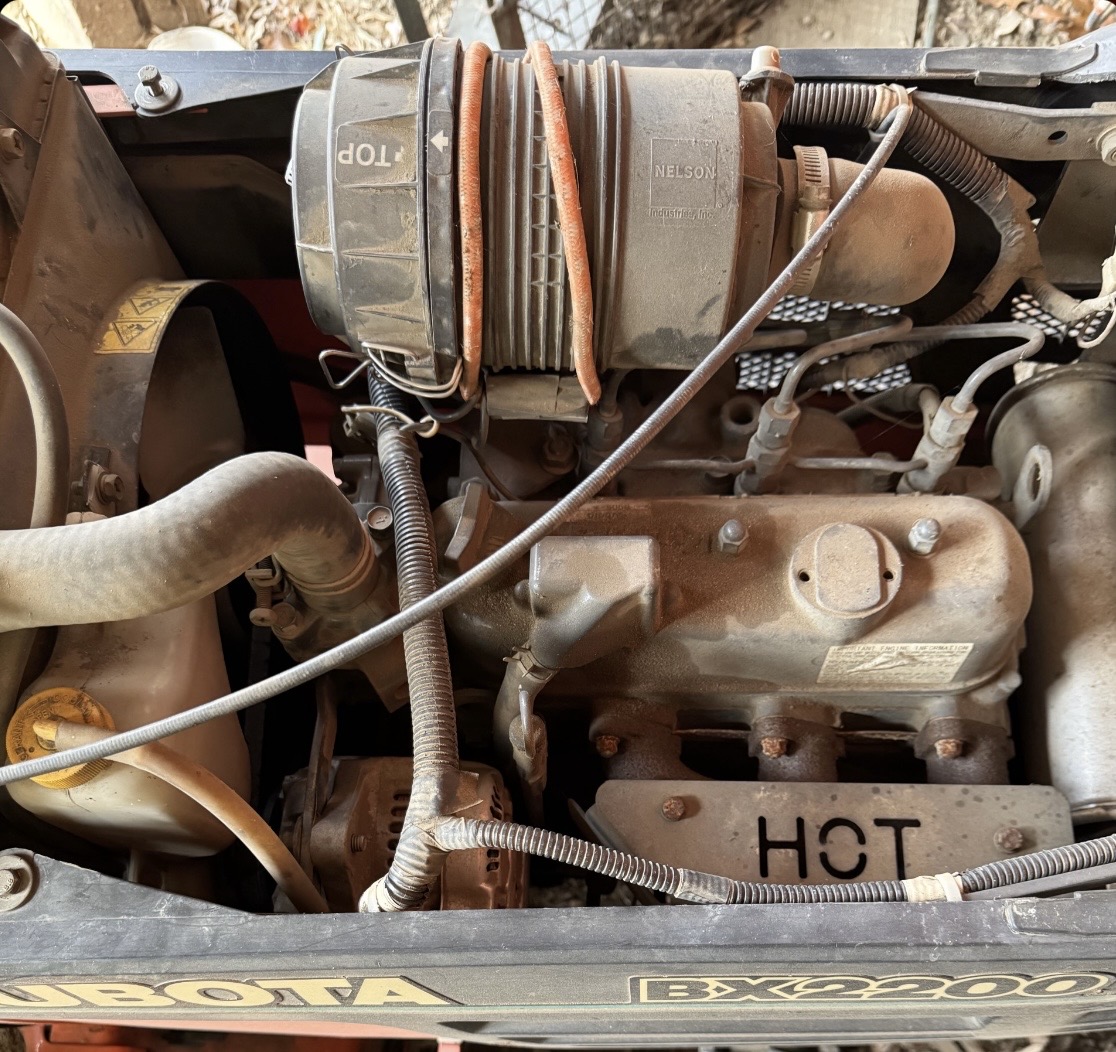

My BX 2200 is the same tractor (without the loader and backhoe). After repairing a broken air cleaner strap several times over the years, a year or two ago came up with this solution which is a winner, for me anyway. KISS solution- cheap imported bungee cord (picture taken about a month or two ago):


  • Like
Reactions: 1 user

Lumberjack1012

New member
Premium Member

Equipment
Kubota BX22D LA210
Jan 17, 2026
13
12
3
52
Denver North Carolina
My BX 2200 is the same tractor (without the loader and backhoe). After repairing a broken air cleaner strap several times over the years, a year or two ago came up with this solution which is a winner, for me anyway. KISS solution- cheap imported bungee cord (picture taken about a month or two ago):

View attachment 169003
thought maybe getting a aluminum or metal thin flat stock and bending it thanks for the insite that it will break so dont buy one


Henro

Well-known member

Equipment
B2910, BX2200, KX41-2V mini Ex.
May 24, 2019
6,065
3,345
113
North of Pittsburgh PA
thought maybe getting a aluminum or metal thin flat stock and bending it thanks for the insite that it will break so dont buy one
Initially I took the two ends of the broken strap and bent them back into hook shapes.
Made a rubber loop using a bicycle inner tube to hold them together and it functioned for a while, but the metal strap broke again in a different place.

Part of the issue is that the BX engine shakes rather violently when you turn it off. I’m not sure if this is the main contributor or not.

Last edited:
