Nothing fancy. Made a cardboard template to cut out a piece of expanded metal for added grill protection. I found the red edging on Amazon and it blends well with Kubota orange. I left it short enough o be able to open the grill guard back so the hood can still be opened. I am probably going to make a smaller piece to cover the bottom section.






  • Like
Reactions: 6 users
W

weaponoffreedom

New member

Equipment
KX91-3 L2501 RTVX900
Oct 8, 2025
12
14
3
nc, usa
I like it. Great job. Are you going to attach it is a different way than zip ties?

You have added no weight, you are no blocking air flow or lights, simple quick, love it.

Old Machinist

Old Machinist

Well-known member

Equipment
Kubota LX3310 cab, JD4410, JD F725, Swisher 60", etc.
May 27, 2024
612
710
93
NE FL
I'm still thinking on the mounting.

A better more permanent mount would be some cross bars that would support id and bolt it in place but I will probably just replace the zip ties with stainless straps since I have some. It's not hindering opening of the hood so I won't have any need to remove it. I might even just use the heavier 100 lb plastic straps.

It is cut a little oversize so if anything hits it it should still add some protection before collapsing.

Like I said, still thinking. ;)

  • Like
Reactions: 1 user
Runs With Scissors

Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
3,598
4,741
113
Michigan
Nice job!



I made a couple of these to clamp mine on with.




Pretty simple, yet very sturdy.

I did not like the idea of drilling into my new (at the time) tractor.



Used an old “inner tube” between them to prevent “chaffing”.

  • Like
  • Haha
Reactions: 4 users
Old Machinist

Old Machinist

Well-known member

Equipment
Kubota LX3310 cab, JD4410, JD F725, Swisher 60", etc.
May 27, 2024
612
710
93
NE FL

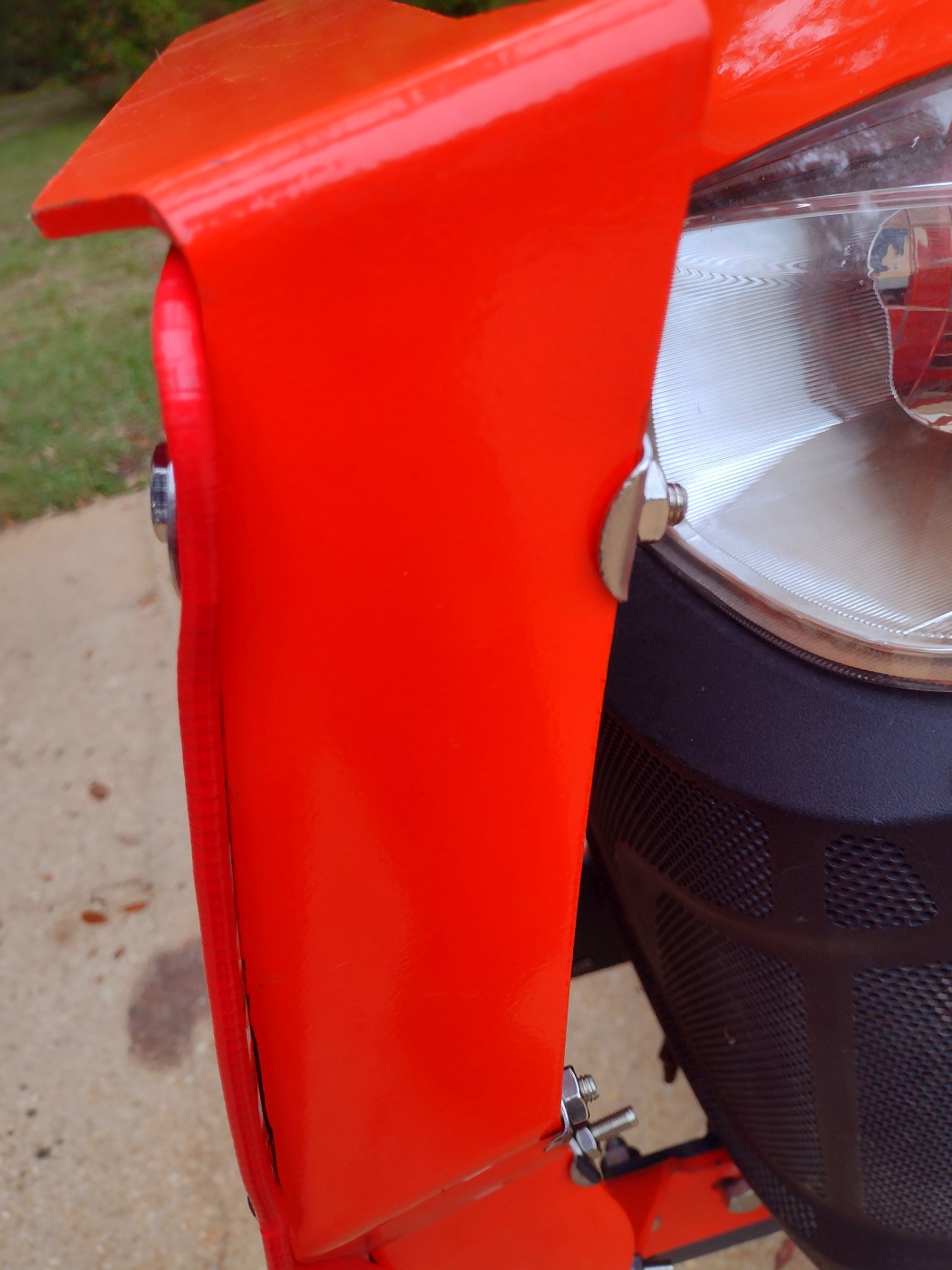

Finished up the lower part today and secured it a little better. I had some stainless bolts and fender washers. I just bent the edge of the fender washers over to grab the edge and tightened the bolts down.




  • Like
Reactions: 7 users
Old Machinist

Old Machinist

Well-known member

Equipment
Kubota LX3310 cab, JD4410, JD F725, Swisher 60", etc.
May 27, 2024
612
710
93
NE FL
WI_Hedgehog said:
How's the grip? They look a bit rounded like AG tires, how are they on the lawn? Do you run them a little low or max PSI?
Click to expand...

I am running them around 10-12 psi. They ride rough. My rears are filled. If I had bought the tractor new I would have ordered it with turfs.

Last edited:
  • Like
Reactions: 1 user
Runs With Scissors

Runs With Scissors

Well-known member

Equipment
L2501 TLB , Grappel, Brush Hog, Box Blade, Ballast box, Forks, Tiller, PH digger
Jan 25, 2023
3,598
4,741
113
Michigan
Old Machinist said:
Finished up the lower part today and secured it a little better. I had some stainless bolts and fender washers. I just bent the edge of the fender washers over to grab the edge and tightened the bolts down.

View attachment 164834

View attachment 164835
Click to expand...
Excellent idea my good man!

That is a very elegant solution.

I have said it before, but I'll say it again.

This site is loaded with very talented people and good ideas!!!!!! 🍻
